Smoker Build

This is my attempt at an all stainless vertical propane smoker.

The Raw Materials

1" square tubing, .0435 sheet goods, a cut-off saw.....and beer.

I made up a jig to make repetitive cuts since we're making 3 identical units.

Here's all the finished cuts.

The frames being made for the sides of the smoker.

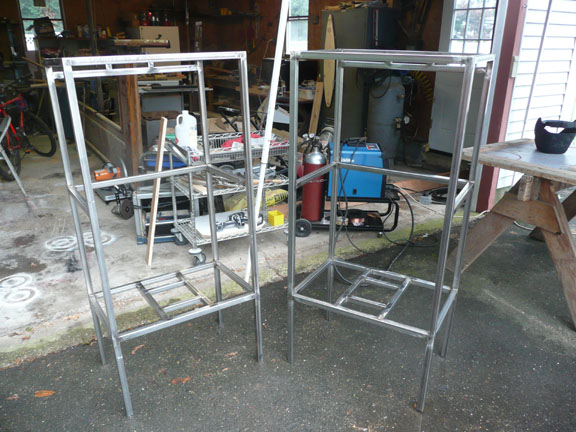

And the finished frames

Bits and pieces:

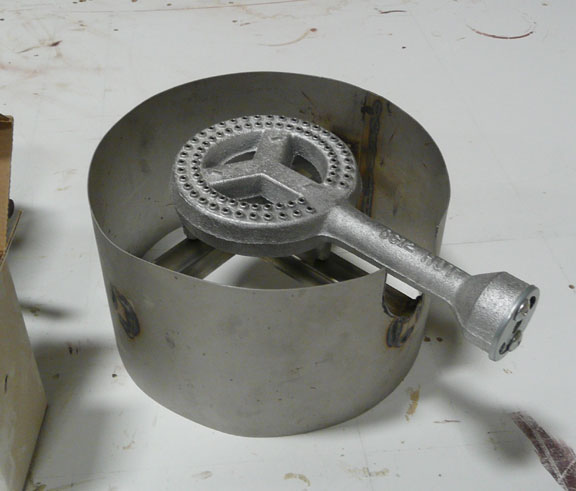

Burner Assembly

Door handle assembly

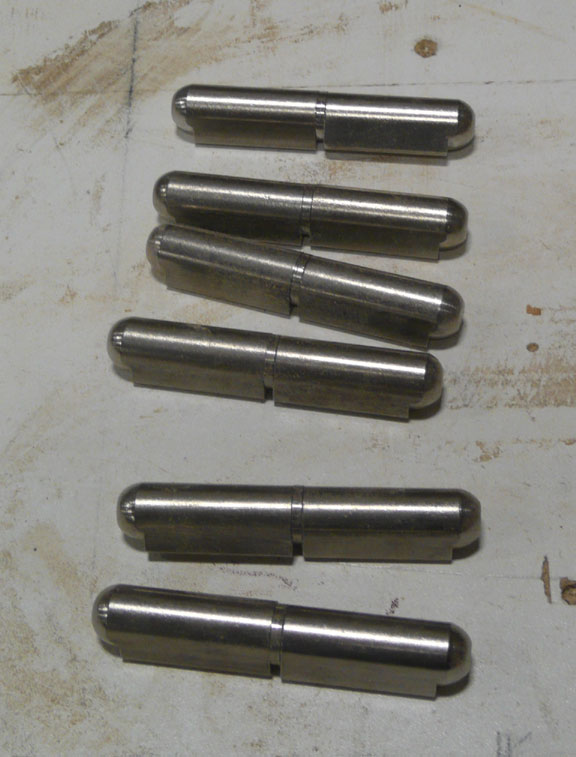

Hinges

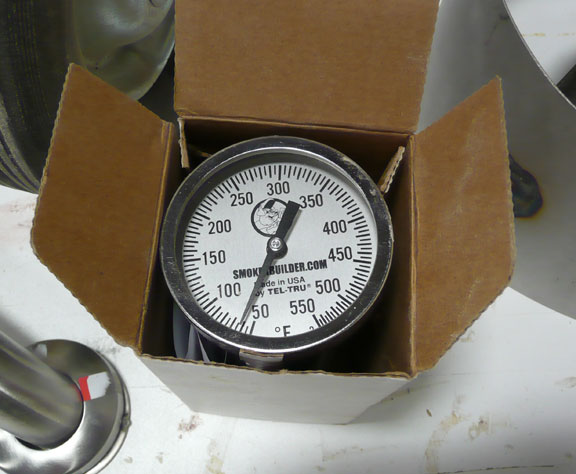

Thermometer

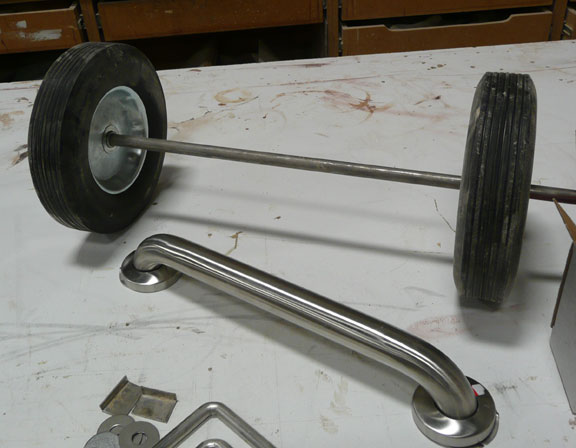

Wheels and handle. I'm making this like a hand truck to move it around.

The shelf tracks installed.

The burner is installed.

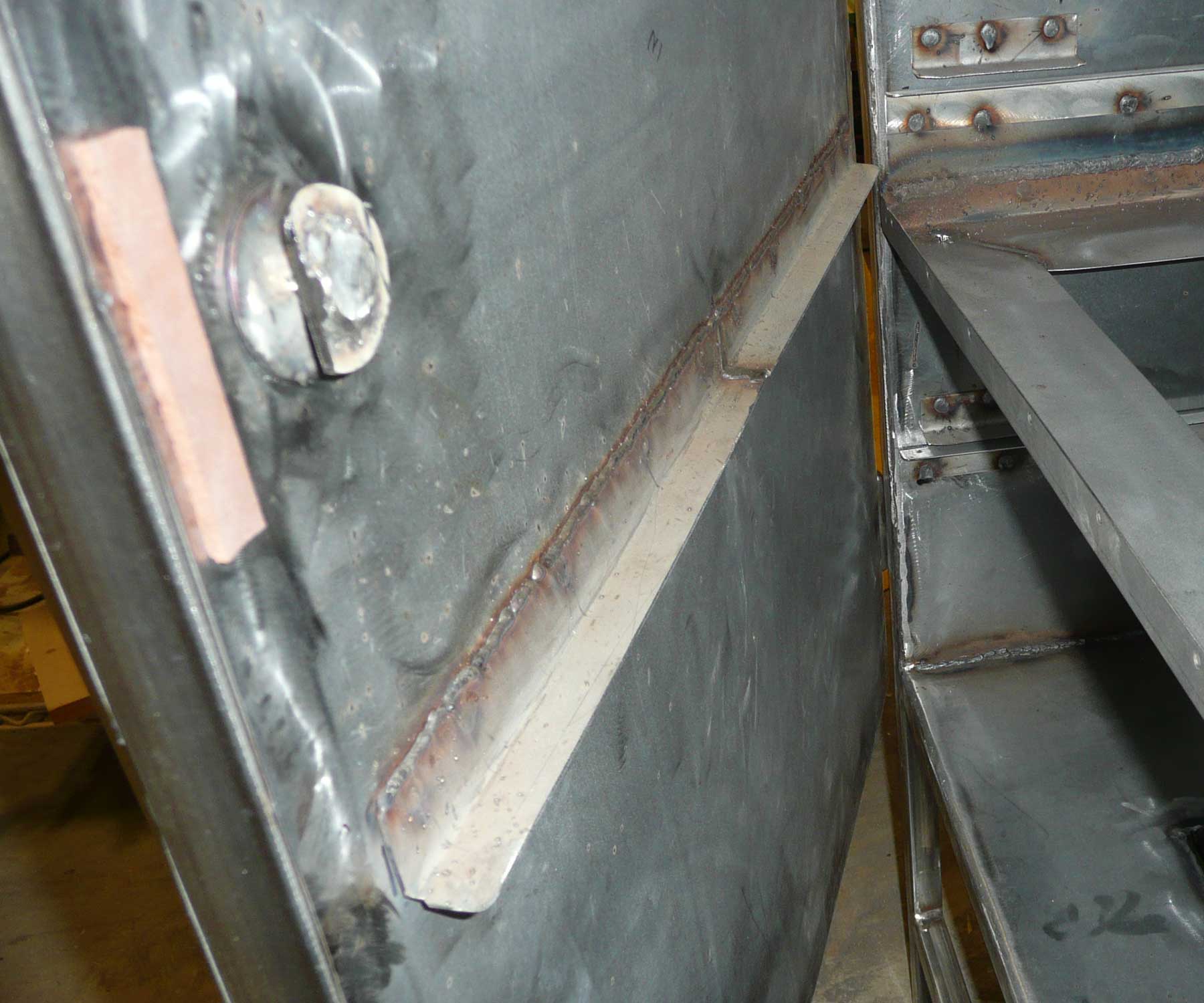

The latch and drip edge.

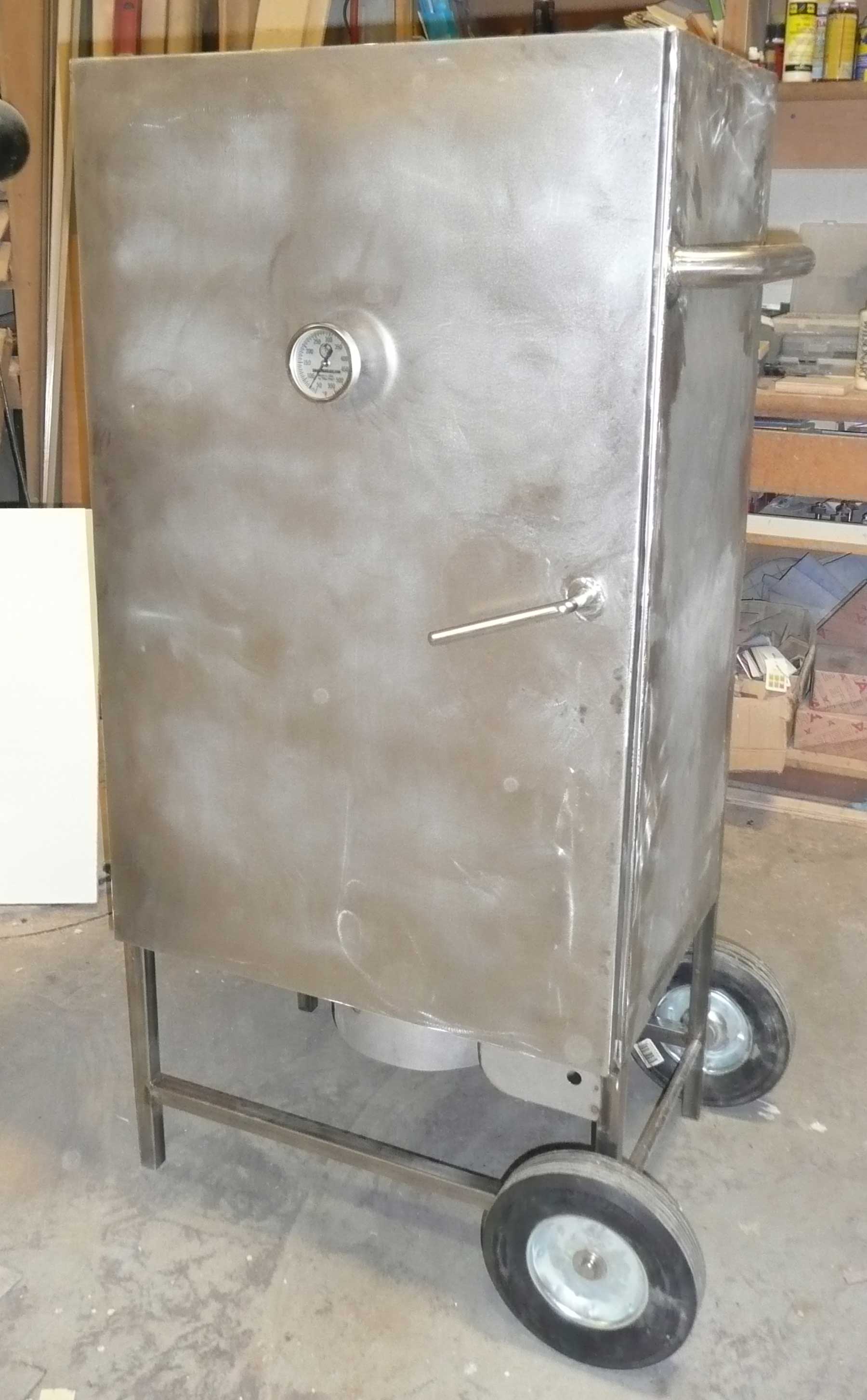

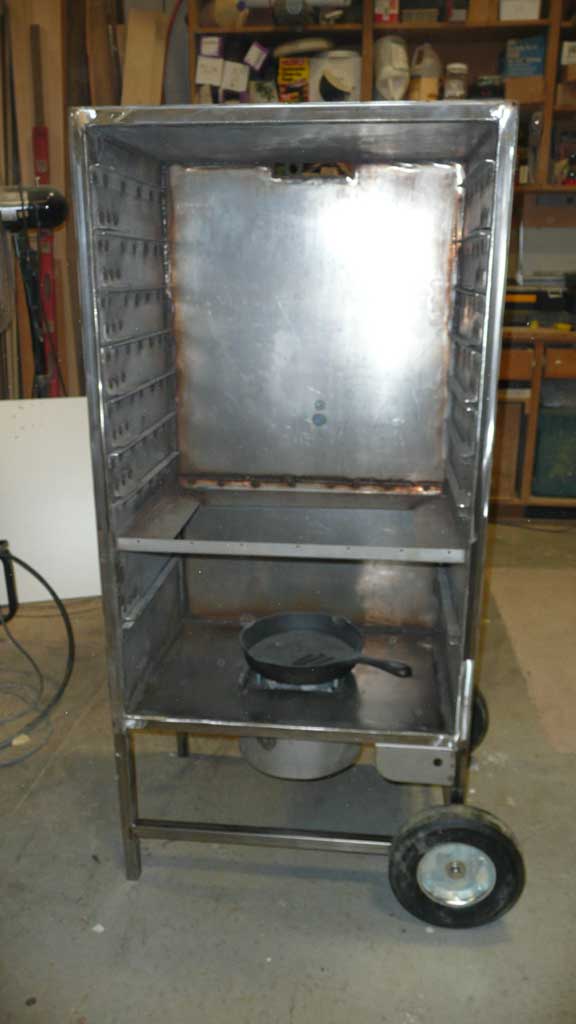

Just about finished.
